Reproducing the Velador Experiment

Home Experiment Goals FAQ Theoretical Thermal Refraction Measuring Thermal Refraction Lateral Beam Deflection Vertical Beam Deflection Measuring Beam Deflection Optimum Beam Section Laser Camera Support Beam Mount Filter Camera & Laser Cells Components Experimental Controls Cell Installation Assembly Photos Calibration Photos Measuring the Images False Signal Simulation Phase 1 Experimental Procedure My First Trial Speculation for Phase 1 Trial 4 Trial 6 Trial 8 Dr. Osadchey's 6-11-07 Trial Trial 9 Trial 10 Trial 11 Trial 12 Trial 13 Trial 14 Trial 15 Trial 16 Conclusions for Phase 1 Trial 18 Trial 21 Trial 22 Trial 23 Trial 24 Dr. Osadchey's 11-5-07 Trial Trial 25 Trial 26 Trial 27 Trial 28 Trial 29 Trial 30 Dr. Osadchey's 12/9/07 Trials Trial 31 Trial 32 Trial 33 Results for Phase 1-B Sidereal Index Links More Links Speculation for Phase 2 Trial 34 Trial 35 Trial 36 Trial 37 Trial 39 Trial 40 Trial 41 Trial 42 Trial 43 Trial 44 Trial 45 Trial 46 Trial 47 Trial 48 Trial 50 Trial 51 Trial 52 Trial 53 Trial 54 Trial 55 Trial 56 Trial 57 Trial 58 Trial 59 Trial 60 (Denham Springs, LA) Trial 63 Trial 64A Trial 65A Trial 65B Custom Rich-Text Page Custom Rich-Text Page

Trial 12

Trial 12, 6/14/07, Start 05:52:?, End @ 06:06:47, Approximate 10 second interval

	MEAN		STDEV		MEDIAN		MODE
ANGLE	X	Y	X	Y	X	Y	X	Y
0	319.4968	430.9542	92.77153	118.8571	326	437	415	323
30	319.8251	431.736	92.59096	118.6282	326	438	414	321
60	320.0342	432.4239	92.53856	118.7341	326	440	416	321
90	319.9808	432.951	92.32436	118.5137	326	441	416	320
120	319.8276	433.884	92.5424	118.634	326	440	418	321
150	320.0573	434.5246	92.42081	118.7427	326	442	418	319
180	319.3025	434.9115	92.18919	118.7159	326	440	419	320
210	318.3153	435.6822	92.34315	118.3792	325	441	416	321
240	317.6354	435.8811	92.47792	118.6198	325	442	416	320
270	316.6608	436.2152	92.20089	118.5703	323	441	416	320
300	316.1073	437.3722	92.42245	118.9838	323	442	419	324
330	316.2327	437.7718	92.37953	118.9555	322	442	417	324
360	316.2168	438.2193	92.2977	118.8362	322	443	417	322
390	316.7092	438.404	92.13074	118.5041	323	442	416	317
420	316.7204	439.0909	92.38845	118.6772	324	444	414	320
450	316.7031	439.748	92.21585	118.8322	322	445	416	321
480	316.3753	440.5644	92.33547	118.8383	323	445	416	322
510	315.961	440.9499	92.44023	118.9793	322	445	417	324
540	315.2473	441.2513	92.47149	118.6668	320	445	415	324
570	315.1052	441.2474	92.40331	118.7128	320	445	415	323
600	314.0132	442.819	92.5657	118.6606	318	446	416	325
630	313.6543	442.633	92.44769	118.4229	318	446	413	324
660	313.0728	443.2197	92.63779	118.7181	318	448	416	324
690	313.9742	443.7214	92.63364	119.0374	319	448	418	324
720	313.1297	443.8337	92.63634	118.8526	318	449	416	324
750	313.5797	444.3312	92.60327	118.7068	318	448	415	324
780	313.9235	444.4047	92.67748	118.9904	318	448	418	324
810	313.7758	444.9672	92.70358	118.872	318	450	417	325
840	314.1716	444.1924	92.57001	118.7132	319	446	419	322
870	313.7404	445.4545	92.6784	118.5745	318	451	416	325
900	313.3347	445.2841	92.69127	118.7961	317	449	417	324
930	312.9205	445.59	92.66787	118.7701	316	449	414	324
960	312.3698	445.9863	92.67649	118.5944	316	450	414	324
990	311.206	446.3599	92.6843	118.4991	316	451	416	324
1020	311.3665	445.9894	92.56049	118.5353	316	451	415	323
1050	311.6072	446.5539	92.51628	118.7508	318	452	417	325
1080	311.438	446.9207	92.30809	118.327	316	451	414	323
1110	311.438	446.9207	92.30809	118.327	316	451	414	323
1140	312.2998	447.4115	92.47855	118.4964	316	451	416	324
1170	311.861	448.878	92.65773	118.2949	316	454	415	324
1200	311.8435	448.873	92.51254	118.3857	316	453	413	324
1230	311.5269	449.4957	92.49833	118.6969	316	454	416	325
1260	311.0538	449.4686	92.37234	118.3257	316	454	416	323
1290	310.4861	450.4957	92.30092	118.0086	316	457	413	323
1320	309.8978	450.9832	92.49995	118.159	316	457	414	324
1350	309.3642	450.3525	92.45879	118.4752	316	456	413	323
1380	309.0499	451.2442	92.58118	118.2873	316	456	413	325
1410	309.7578	450.6606	92.55098	118.3045	316	455	412	323
1440	309.6431	451.3492	92.44952	118.3487	316	456	412	324
1470	310.2426	451.1041	92.5351	118.2302	316	455	415	322

Trials 11 and 12 were an attempt to conduct a control experiment to isolate thermal deformation effects. Each was conducted using a different time interval between measurements.

Trial 11 ended with less than two turns due to camera failure. Results for Trial 11 are inconclusive. Trial 12 proceeded to completion as scheduled.

With four complete turns, Trial 12 may be considered independently of Trial 11. Like Trial 8, it shows a null result, with oscillating horizontal image motion less than the selected lower rejection criterion and vertical image motion less than the lower measurement limit of the apparatus. Being conducted at approximately the same time as Trial 8, it does not provide an adequate test of geometric factors but does confirm the Trial 8 results. It also confirms that vertical drift is following a cooling curve with an exponential and/or parabolic component, and is not strictly linear. This additional result suggests that the vertical motion of the image in previous trials may not be due to thermal deformation, but is not conclusive without an accompanying control trial.

11-24-07

The formula used to compute the adjusted coordinates was changed and the degree scale was changed to show 0 deg = north.

Trial 12
6/14/07, start05:52:00 , end 06:06:47, 8 Seconds Interval
Mean interval 17.74
Sidereal Time 23:25:21
MEAN STDEV MEDIAN MODE
ANGLE Measure X Xadj Y Yadj R X Y X Y X Y
270 270 319.4968 -0.79 430.9542 0.5812 0.980762 92.77153 118.8571 326 437 415 323
300 300 319.8251 -0.1449 431.736 0.394 0.4198 92.59096 118.6282 326 438 414 321
330 330 320.0342 0.3774 432.4239 0.2935 0.478093 92.53856 118.7341 326 440 416 321
360 0 319.9808 0.6336 432.951 0.3466 0.722205 92.32436 118.5137 326 441 416 320
390 30 319.8276 0.7864 433.884 -0.0134 0.786514 92.5424 118.634 326 440 418 321
420 60 320.0573 1.3185 434.5246 -0.0882 1.321447 92.42081 118.7427 326 442 418 319
450 90 319.3025 0.8625 434.9115 0.0835 0.866532 92.18919 118.7159 326 440 419 320
480 120 318.3153 0.1705 435.6822 -0.1358 0.217972 92.34315 118.3792 325 441 416 321
510 150 317.6354 -0.2178 435.8811 0.2095 0.302204 92.47792 118.6198 325 442 416 320
540 180 316.6608 -0.9044 436.2152 0.4124 0.993988 92.20089 118.5703 323 441 416 320
570 210 316.1073 -1.1735 437.3722 -0.2148 1.192997 92.42245 118.9838 323 442 419 324
600 240 316.2327 -0.7673 437.7718 -0.0918 0.772772 92.37953 118.9555 322 442 417 324
630 270 316.2168 -0.506 438.2193 -0.0239 0.506564 92.2977 118.8362 322 443 417 322
660 300 316.7092 0.26 438.404 0.2996 0.396686 92.13074 118.5041 323 442 416 317
690 330 316.7204 0.5412 439.0909 0.1137 0.553015 92.38845 118.6772 324 444 414 320
720 0 316.7031 0.7903 439.748 -0.0496 0.791855 92.21585 118.8322 322 445 416 321
750 30 316.3753 0.7253 440.5644 -0.3794 0.818538 92.33547 118.8383 323 445 416 322
780 60 315.961 0.5702 440.9499 -0.2855 0.637682 92.44023 118.9793 322 445 417 324
810 90 315.2473 0.1121 441.2513 -0.1147 0.160382 92.47149 118.6668 320 445 415 324
840 120 315.1052 0.222 441.2474 0.3542 0.418021 92.40331 118.7128 320 445 415 323
870 150 314.0132 -0.6216 442.819 -0.7596 0.981519 92.5657 118.6606 318 446 416 325
900 180 313.6543 -0.7357 442.633 -0.123 0.745911 92.44769 118.4229 318 446 413 324
930 210 313.0728 -1.076 443.2197 -0.2663 1.108464 92.63779 118.7181 318 448 416 324
960 240 313.9742 0.063 443.7214 -0.3318 0.337728 92.63364 119.0374 319 448 418 324
990 270 313.1297 -0.5475 443.8337 -0.0151 0.547708 92.63634 118.8526 318 449 416 324
1020 300 313.5797 0.1329 444.3312 -0.0908 0.160957 92.60327 118.7068 318 448 415 324
1050 330 313.9235 0.7035 444.4047 0.2503 0.746701 92.67748 118.9904 318 448 418 324
1080 0 313.7758 0.779 444.9672 0.0952 0.784796 92.70358 118.872 318 450 417 325
1110 30 314.1716 1.3944 444.1924 1.2702 1.886202 92.57001 118.7132 319 446 419 322
1140 60 313.7404 1.1792 445.4545 0.4011 1.24555 92.6784 118.5745 318 451 416 325
1170 90 313.3347 0.9859 445.2841 0.9573 1.374199 92.69127 118.7961 317 449 417 324
1200 120 312.9205 0.7805 445.59 1.03 1.292316 92.66787 118.7701 316 449 414 324
1230 150 312.3698 0.435 445.9863 1.0051 1.095195 92.67649 118.5944 316 450 414 324
1260 180 311.206 -0.5272 446.3599 0.9957 1.126658 92.6843 118.4991 316 451 416 324
1290 210 311.3665 -0.1687 445.9894 1.7232 1.731438 92.56049 118.5353 316 451 415 323
1320 240 311.6072 0.2664 446.5539 1.5085 1.531842 92.51628 118.7508 318 452 417 325
1350 270 311.438 0.288 446.9207 1.4843 1.511982 92.30809 118.327 316 451 414 323
1380 300 311.438 0.4752 446.9207 1.8197 1.880724 92.30809 118.327 316 451 414 323
1410 330 312.2998 1.5206 447.4115 1.6571 2.249045 92.47855 118.4964 316 451 416 324
1440 0 311.861 1.2618 448.878 0.5116 1.36157 92.65773 118.2949 316 454 415 324
1470 30 311.8435 1.4207 448.873 0.8304 1.645586 92.51254 118.3857 316 453 413 324
1500 60 311.5269 1.2769 449.4957 0.5143 1.376582 92.49833 118.6969 316 454 416 325
1530 90 311.0538 0.973 449.4686 0.8408 1.285952 92.37234 118.3257 316 454 416 323
1560 120 310.4861 0.5709 450.4957 0.1059 0.580639 92.30092 118.0086 316 457 413 323
1590 150 309.8978 0.1446 450.9832 -0.0966 0.173899 92.49995 118.159 316 457 414 324
1620 180 309.3642 -0.2306 450.3525 0.8119 0.844013 92.45879 118.4752 316 456 413 323
1650 210 309.0499 -0.3901 451.2442 0.1908 0.434261 92.58118 118.2873 316 456 413 325
1680 240 309.7578 0.469 450.6606 1.0378 1.138855 92.55098 118.3045 316 455 412 323
1710 270 309.6431 0.5019 451.3492 0.6054 0.786392 92.44952 118.3487 316 456 412 324
1740 300 310.2426 1.2454 451.1041 1.0995 1.661301 92.5351 118.2302 316 455 415 322

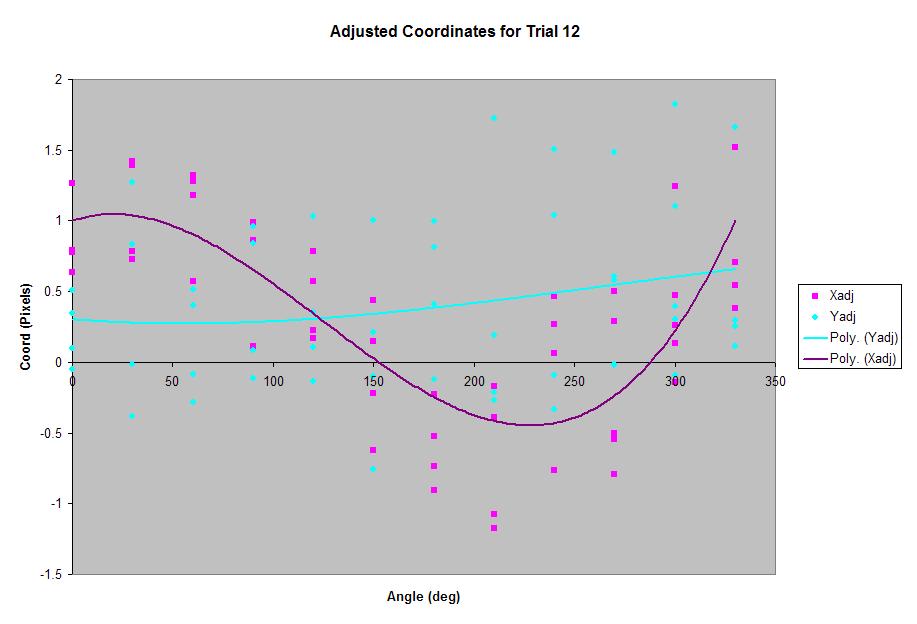

Adjusted coordinates were computed using a second order polynomial approximation of drift vs. angle.
Angles have been changed to reflect 0 deg = north.
X Y
a 0.000002 -0.000004
b -0.0117 0.0221
c 323.3 425.86
Average
Measure X Y
0 0.866175 0.22595
30 1.0817 0.42695
60 1.0862 0.135425
90 0.733375 0.441725
120 0.435975 0.338575
150 -0.06495 0.0896
180 -0.59948 0.52425
210 -0.70208 0.358225
240 0.007775 0.530675
270 -0.21072 0.52638
300 0.39372 0.7044
330 0.785675 0.57865
Estimated Max X 60 degrees
Estimated Magnitude 1.891007 pixels 7.564027 microns

Trial 12
6/14/07, start05:52:00 , end 06:06:47, 8 Seconds Interval
Mean interval		17.74
Sidereal Time		23:25:21

		MEAN					STDEV		MEDIAN		MODE
ANGLE	Measure	X	Xadj	Y	Yadj	R	X	Y	X	Y	X	Y
270	270	319.4968	-0.79	430.9542	0.5812	0.980762	92.77153	118.8571	326	437	415	323
300	300	319.8251	-0.1449	431.736	0.394	0.4198	92.59096	118.6282	326	438	414	321
330	330	320.0342	0.3774	432.4239	0.2935	0.478093	92.53856	118.7341	326	440	416	321
360	0	319.9808	0.6336	432.951	0.3466	0.722205	92.32436	118.5137	326	441	416	320
390	30	319.8276	0.7864	433.884	-0.0134	0.786514	92.5424	118.634	326	440	418	321
420	60	320.0573	1.3185	434.5246	-0.0882	1.321447	92.42081	118.7427	326	442	418	319
450	90	319.3025	0.8625	434.9115	0.0835	0.866532	92.18919	118.7159	326	440	419	320
480	120	318.3153	0.1705	435.6822	-0.1358	0.217972	92.34315	118.3792	325	441	416	321
510	150	317.6354	-0.2178	435.8811	0.2095	0.302204	92.47792	118.6198	325	442	416	320
540	180	316.6608	-0.9044	436.2152	0.4124	0.993988	92.20089	118.5703	323	441	416	320
570	210	316.1073	-1.1735	437.3722	-0.2148	1.192997	92.42245	118.9838	323	442	419	324
600	240	316.2327	-0.7673	437.7718	-0.0918	0.772772	92.37953	118.9555	322	442	417	324
630	270	316.2168	-0.506	438.2193	-0.0239	0.506564	92.2977	118.8362	322	443	417	322
660	300	316.7092	0.26	438.404	0.2996	0.396686	92.13074	118.5041	323	442	416	317
690	330	316.7204	0.5412	439.0909	0.1137	0.553015	92.38845	118.6772	324	444	414	320
720	0	316.7031	0.7903	439.748	-0.0496	0.791855	92.21585	118.8322	322	445	416	321
750	30	316.3753	0.7253	440.5644	-0.3794	0.818538	92.33547	118.8383	323	445	416	322
780	60	315.961	0.5702	440.9499	-0.2855	0.637682	92.44023	118.9793	322	445	417	324
810	90	315.2473	0.1121	441.2513	-0.1147	0.160382	92.47149	118.6668	320	445	415	324
840	120	315.1052	0.222	441.2474	0.3542	0.418021	92.40331	118.7128	320	445	415	323
870	150	314.0132	-0.6216	442.819	-0.7596	0.981519	92.5657	118.6606	318	446	416	325
900	180	313.6543	-0.7357	442.633	-0.123	0.745911	92.44769	118.4229	318	446	413	324
930	210	313.0728	-1.076	443.2197	-0.2663	1.108464	92.63779	118.7181	318	448	416	324
960	240	313.9742	0.063	443.7214	-0.3318	0.337728	92.63364	119.0374	319	448	418	324
990	270	313.1297	-0.5475	443.8337	-0.0151	0.547708	92.63634	118.8526	318	449	416	324
1020	300	313.5797	0.1329	444.3312	-0.0908	0.160957	92.60327	118.7068	318	448	415	324
1050	330	313.9235	0.7035	444.4047	0.2503	0.746701	92.67748	118.9904	318	448	418	324
1080	0	313.7758	0.779	444.9672	0.0952	0.784796	92.70358	118.872	318	450	417	325
1110	30	314.1716	1.3944	444.1924	1.2702	1.886202	92.57001	118.7132	319	446	419	322
1140	60	313.7404	1.1792	445.4545	0.4011	1.24555	92.6784	118.5745	318	451	416	325
1170	90	313.3347	0.9859	445.2841	0.9573	1.374199	92.69127	118.7961	317	449	417	324
1200	120	312.9205	0.7805	445.59	1.03	1.292316	92.66787	118.7701	316	449	414	324
1230	150	312.3698	0.435	445.9863	1.0051	1.095195	92.67649	118.5944	316	450	414	324
1260	180	311.206	-0.5272	446.3599	0.9957	1.126658	92.6843	118.4991	316	451	416	324
1290	210	311.3665	-0.1687	445.9894	1.7232	1.731438	92.56049	118.5353	316	451	415	323
1320	240	311.6072	0.2664	446.5539	1.5085	1.531842	92.51628	118.7508	318	452	417	325
1350	270	311.438	0.288	446.9207	1.4843	1.511982	92.30809	118.327	316	451	414	323
1380	300	311.438	0.4752	446.9207	1.8197	1.880724	92.30809	118.327	316	451	414	323
1410	330	312.2998	1.5206	447.4115	1.6571	2.249045	92.47855	118.4964	316	451	416	324
1440	0	311.861	1.2618	448.878	0.5116	1.36157	92.65773	118.2949	316	454	415	324
1470	30	311.8435	1.4207	448.873	0.8304	1.645586	92.51254	118.3857	316	453	413	324
1500	60	311.5269	1.2769	449.4957	0.5143	1.376582	92.49833	118.6969	316	454	416	325
1530	90	311.0538	0.973	449.4686	0.8408	1.285952	92.37234	118.3257	316	454	416	323
1560	120	310.4861	0.5709	450.4957	0.1059	0.580639	92.30092	118.0086	316	457	413	323
1590	150	309.8978	0.1446	450.9832	-0.0966	0.173899	92.49995	118.159	316	457	414	324
1620	180	309.3642	-0.2306	450.3525	0.8119	0.844013	92.45879	118.4752	316	456	413	323
1650	210	309.0499	-0.3901	451.2442	0.1908	0.434261	92.58118	118.2873	316	456	413	325
1680	240	309.7578	0.469	450.6606	1.0378	1.138855	92.55098	118.3045	316	455	412	323
1710	270	309.6431	0.5019	451.3492	0.6054	0.786392	92.44952	118.3487	316	456	412	324
1740	300	310.2426	1.2454	451.1041	1.0995	1.661301	92.5351	118.2302	316	455	415	322

Adjusted coordinates were computed using a second order polynomial approximation of drift vs. angle.
Angles have been changed to reflect 0 deg = north.

	X	Y
a	0.000002	-0.000004
b	-0.0117	0.0221
c	323.3	425.86

Average
Measure	X	Y
0	0.866175	0.22595
30	1.0817	0.42695
60	1.0862	0.135425
90	0.733375	0.441725
120	0.435975	0.338575
150	-0.06495	0.0896
180	-0.59948	0.52425
210	-0.70208	0.358225
240	0.007775	0.530675
270	-0.21072	0.52638
300	0.39372	0.7044
330	0.785675	0.57865

Estimated Max X		60	degrees
Estimated Magnitude		1.891007	pixels	7.564027	microns
